SEM/EDS Calibration Standards

Our SEM/EDS calibration standards are designed for routine performance checks of electron microscopes and analytical EDS systems. Depending on the configuration, they can be used for EDS energy calibration, EDS resolution verification, BSE/BSD contrast checks, brightness settings for automated workflows and probe/specimen current measurement using an integrated Faraday Cup.

Made from high purity materials, embedded and polished for optimal results. Embedded in aluminum pin stubs or stainless steel, or on request in other base materials. There is a range of customized options. For example the use of traceable magnification calibration samples. Drop us an email if you cannot find what you are looking for.

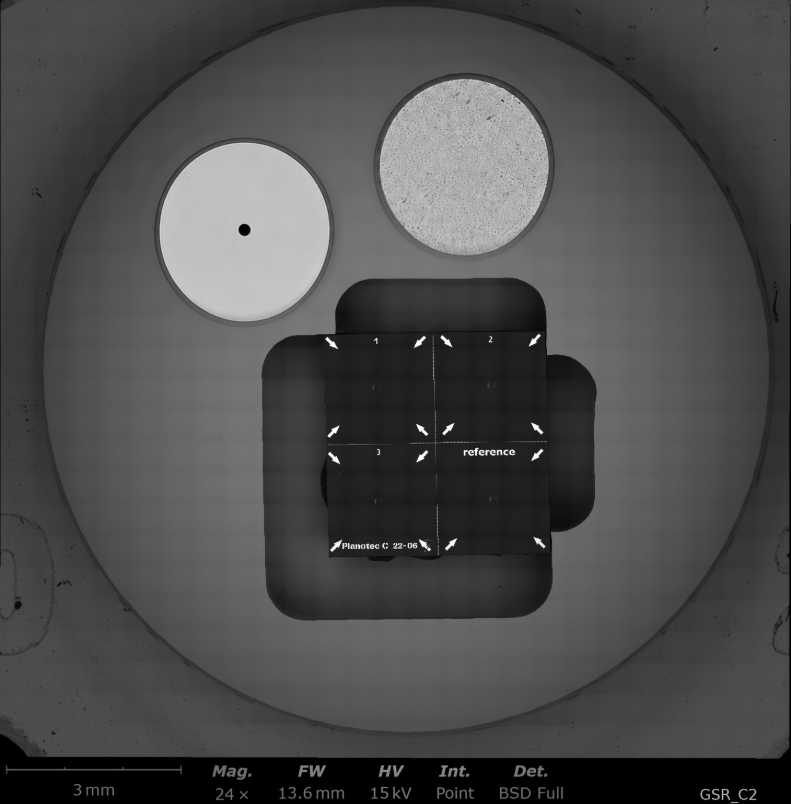

GSR_C2 Test Sample _BSD imag — GSR_C2 Test Sample

3-element EDS and BSD calibration sample

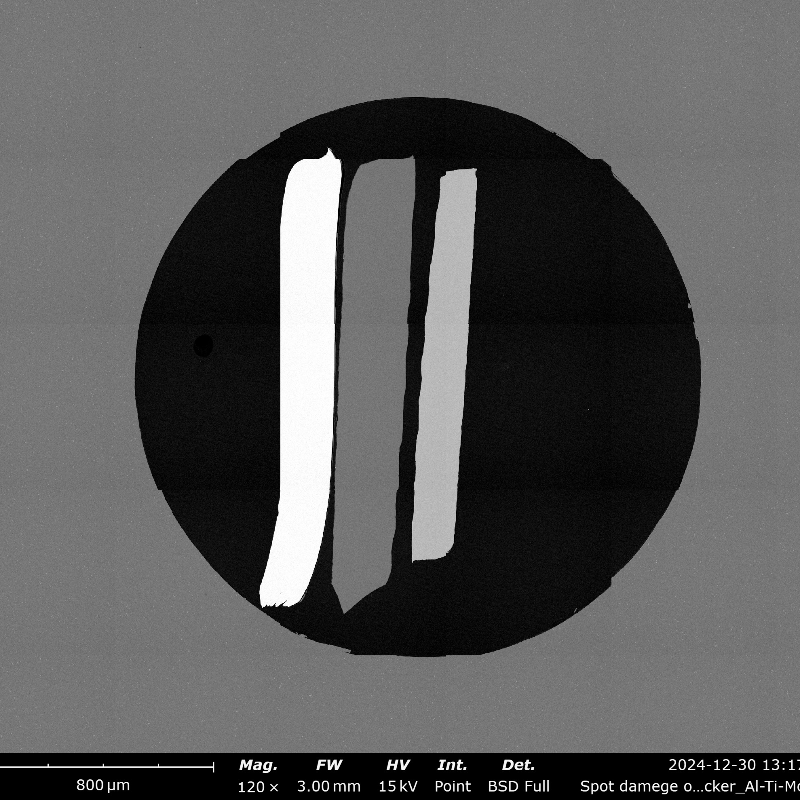

Al-Ti-Mo stub 34 BSD image — Al-Ti-Mo BSD & EDS sample

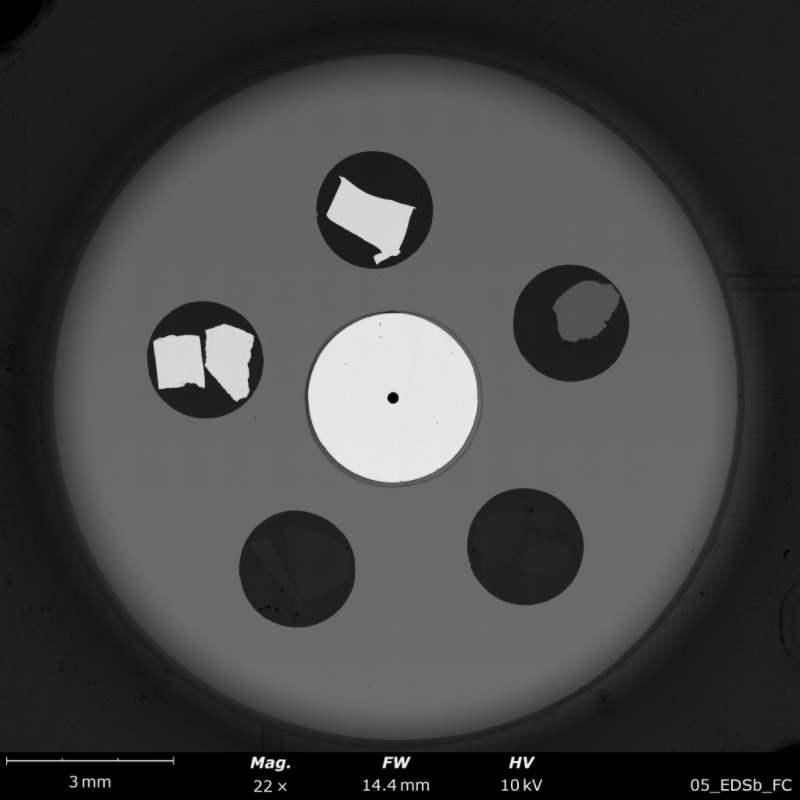

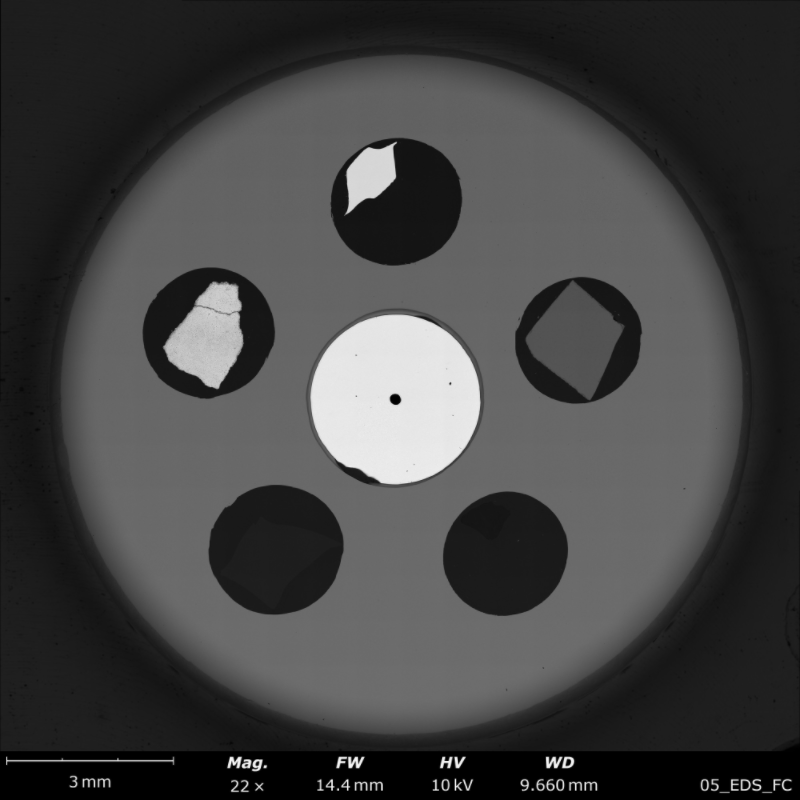

5-light element EDS calibration sample with Faraday cup

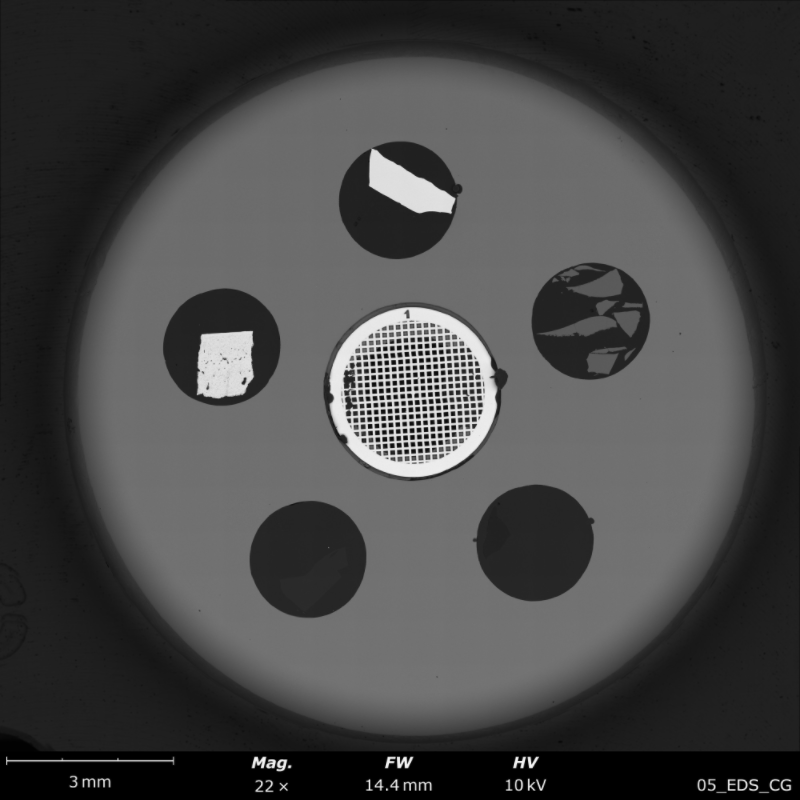

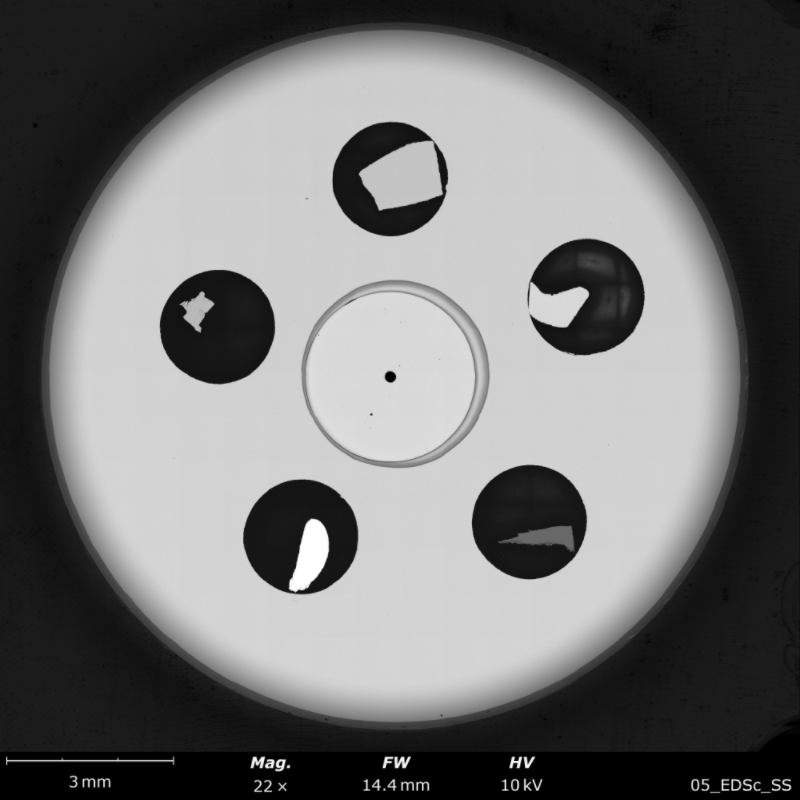

5-light element EDS calibration sample with copper grid

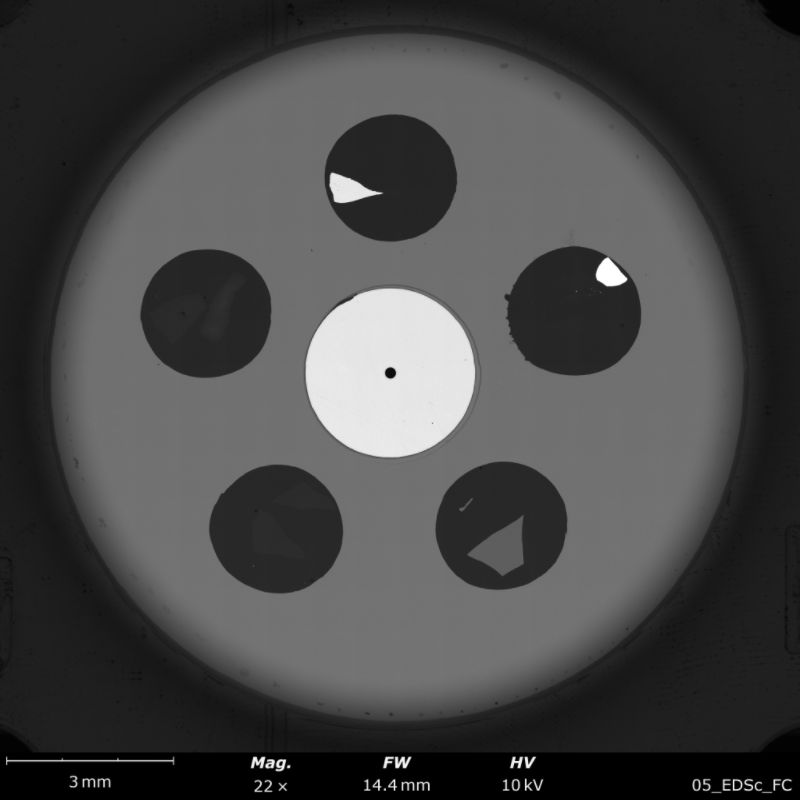

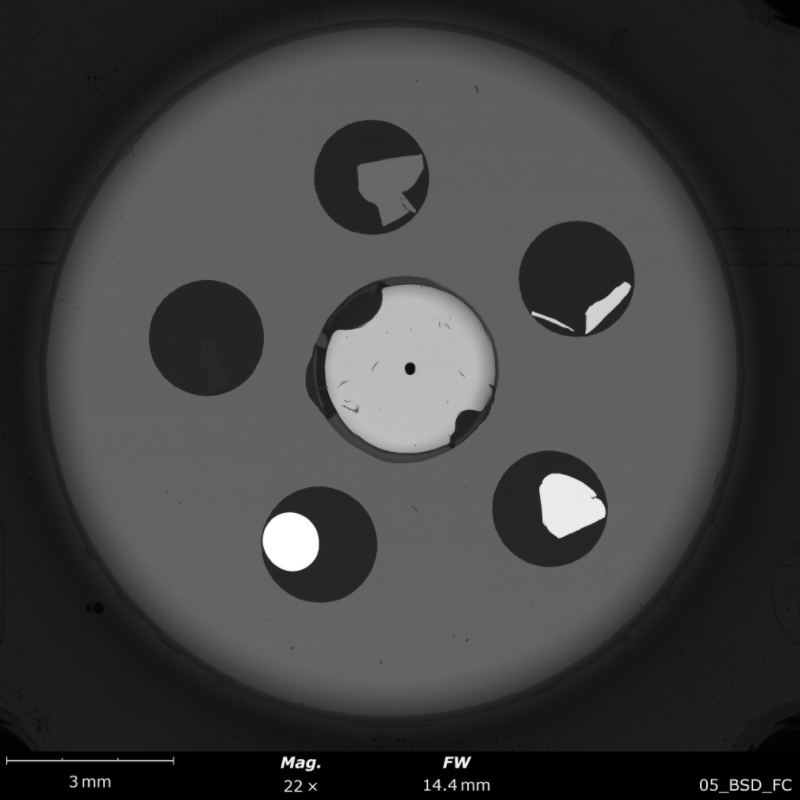

5-element backscatter calibration sample with Faraday cup

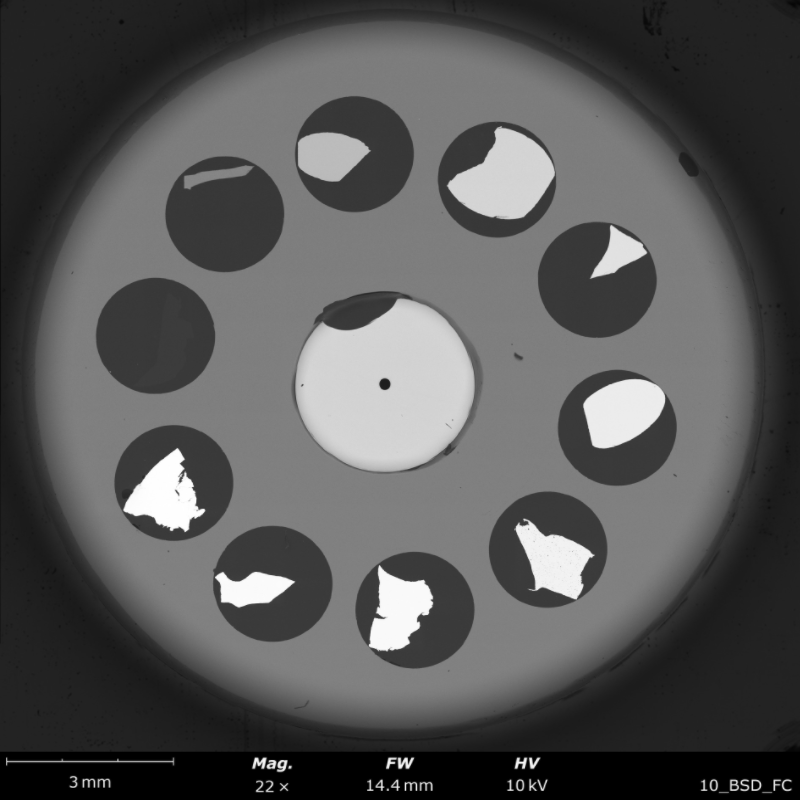

10-element BSD calibration sample — 10-element backscatter calibration sample

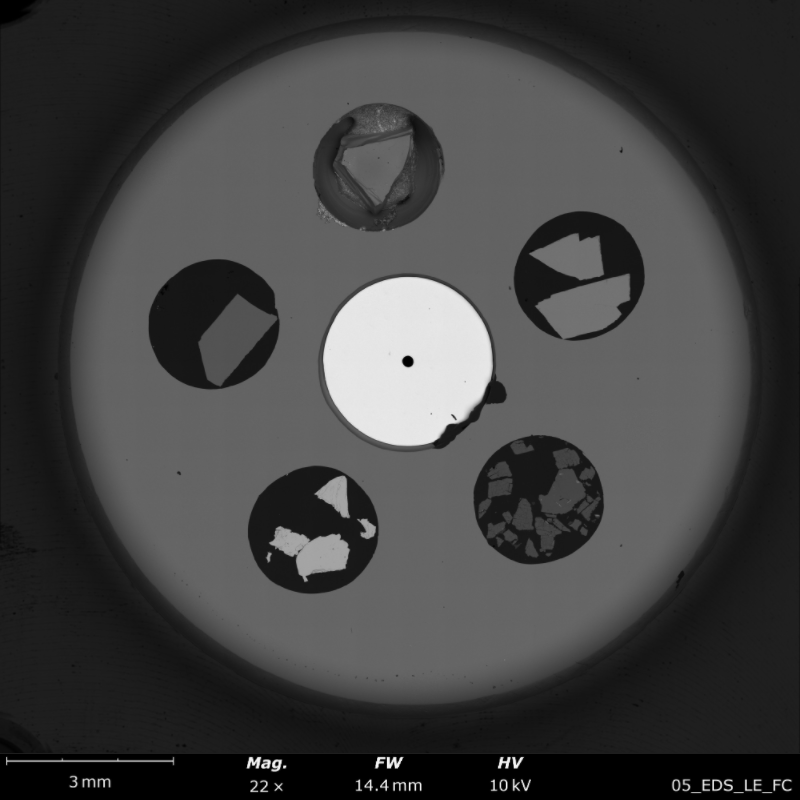

SECS light element EDS calibration sample 05_EDS_LE_FC — SECS light element EDS calibration sample

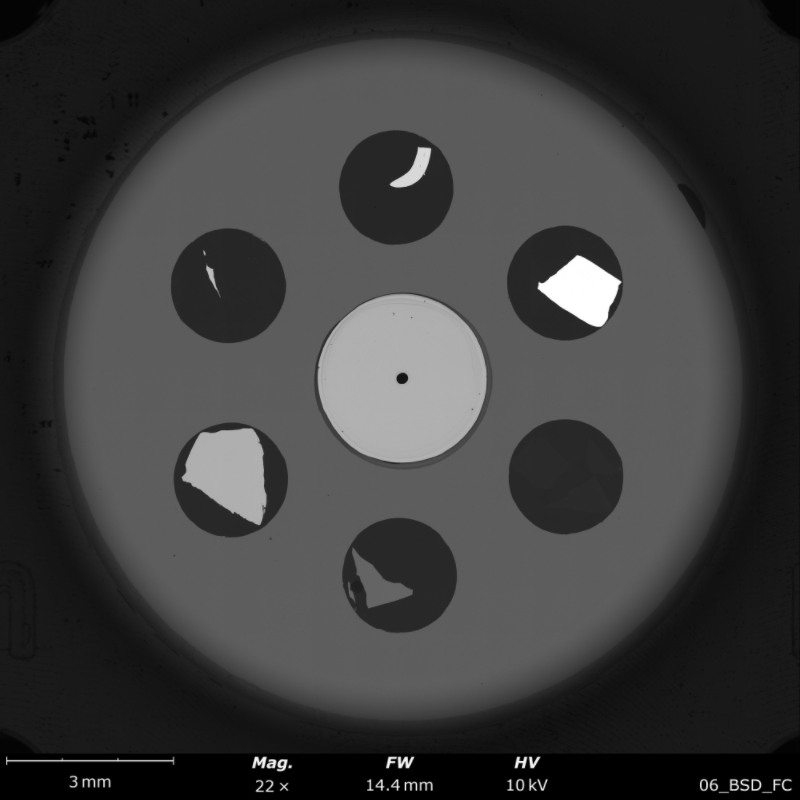

6-element BSD calibration sample — 6-element backscatter calibration sample

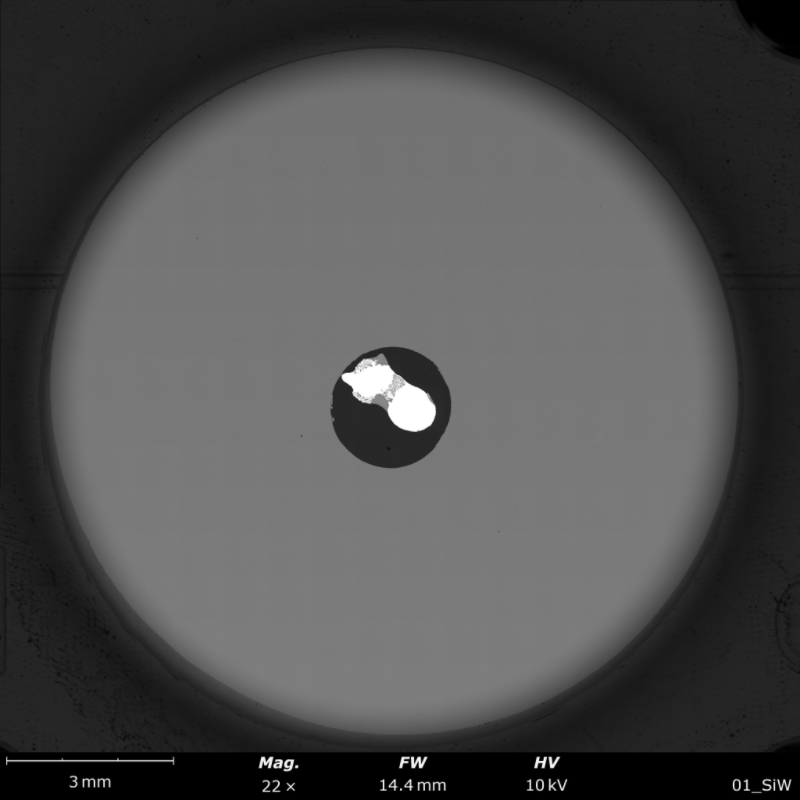

Silicon - Tungsten fusion — Silicon – Tungsten fusion sample

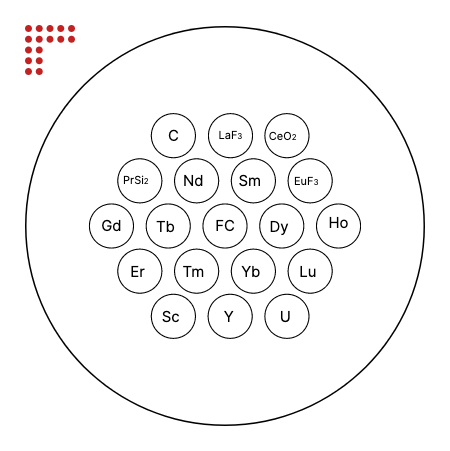

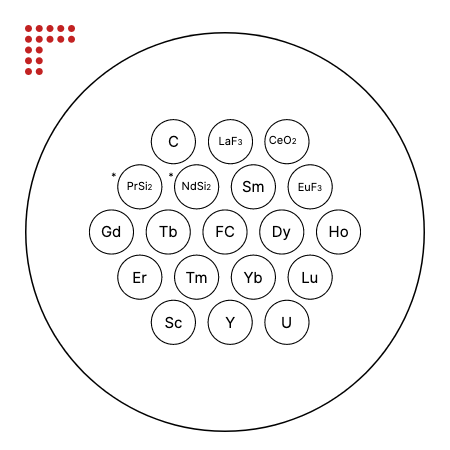

18 rare-earth standards — 18-element rare earth sample in stainless steel

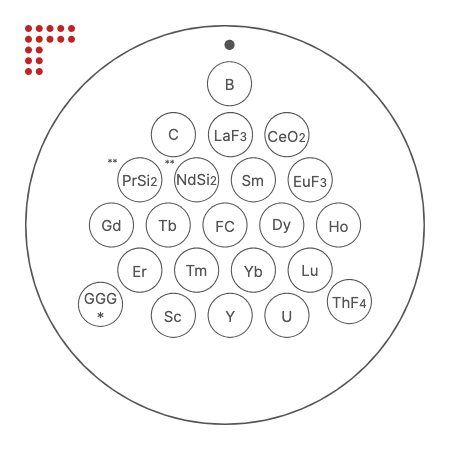

21 rare-earth standards — 21-element rare earth sample in stainless steel
