Cathodoluminescence reference with 7 minerals

The minerals are brightly fluorescent and can be used as a reference for CL detector checks or to test the light tightness of EDS detector windows.

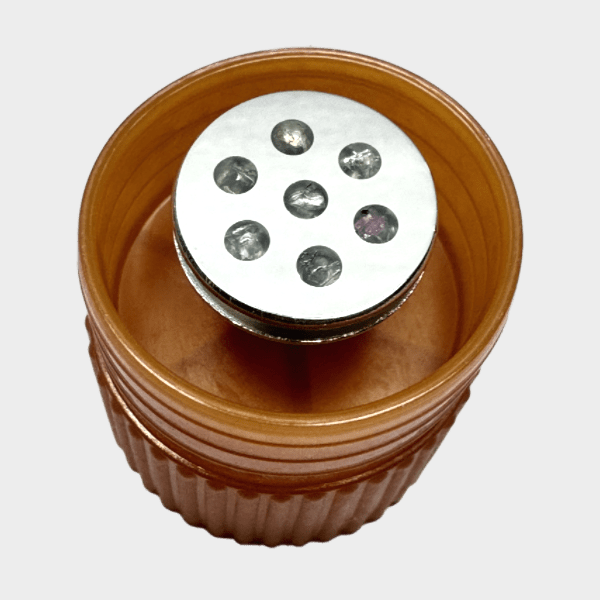

Cathodoluminescence reference mineral sample mounted and polished in a standard 12.5 mm aluminum pin stub.

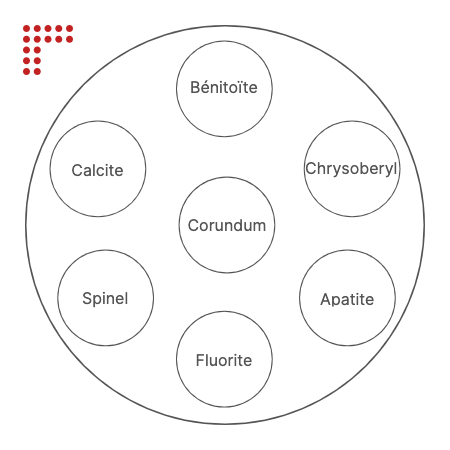

1. Benitoite – BaTiSi3O9
2. Apatite – Ca5(PO4)3(F,Cl,OH)
3. Spinel – MgAl2O4
4. Corundum – Al2O3
5. Chrysoberyl – BeAl2O4
6. Fluorite – CaF2
7. Calcite – CaCO3

Can be mounted on these SEM brands:

FEI / Thermo Fisher, Hitachi*, JEOL*, Phenom, Tescan and Zeiss microscopes.

• Product number: STUB_3_CL
• Price per unit: € 500 excl. VAT

* Requires a pin stub adapter
